The Eisen Löwe sunflower header is a new product from the revived German brand Eisen Löwe and the Sunfloromash plant. The model has premium equipment from leading European manufacturers and is equipped with an autonomous hydraulic drive of the main working elements.

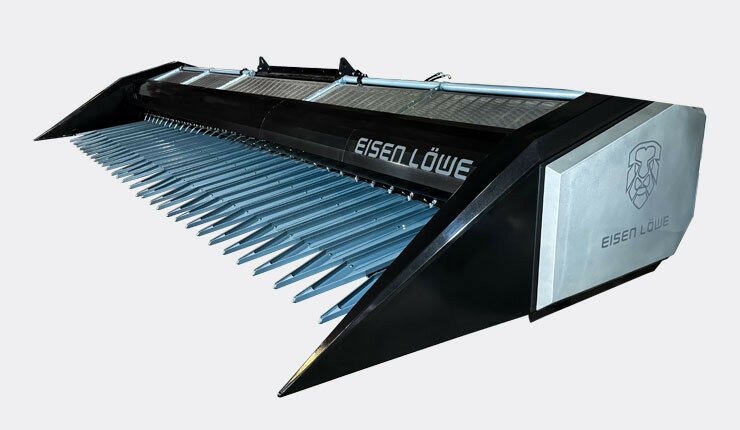

Eisen Löwe premium sunflower combine header
The Eisen Löwe sunflower combine header is a premium series of a solid cut sunflower combine harvester header with an autonomous hydraulic drive of the main working elements.

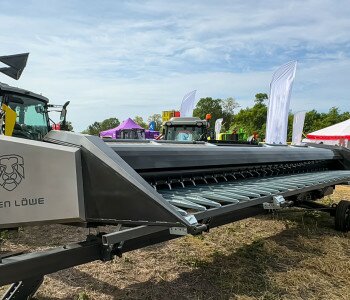

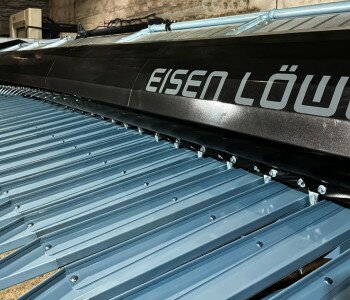

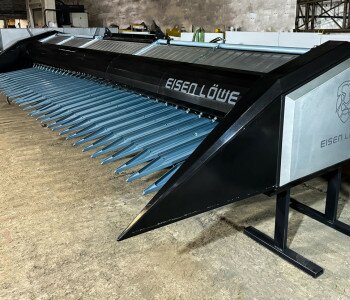

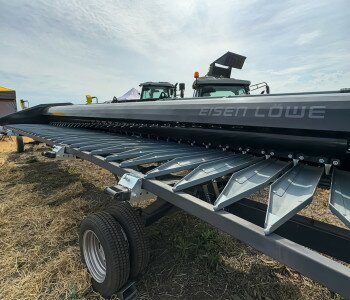

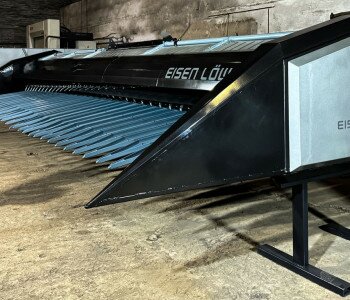

Gallery
Description
The Eisen Löwe solid cut sunflower header is designed for harvesting sunflower of different yields, head sizes and sowing types (row, continuous). It works in conjunction with any combine harvester of the appropriate power. It is available in 6, 7.4 and 9.2 m working widths.
Design features of the header

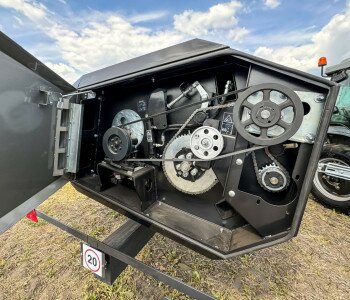

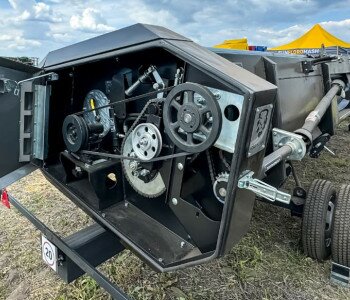

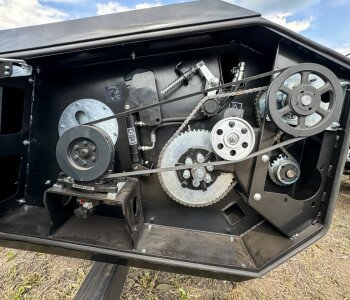

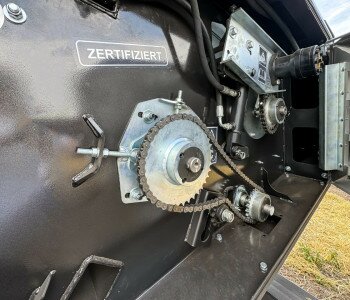

- autonomous hydraulic drive of the main working bodies;
- built-in autonomous oil bath cooling system;
- hydraulic or mechanical drive of the scythe to choose from;
- hydraulic reel outrigger;
- control of header settings from the combine cab;
- a baffle net for catching seeds;
- spiral shape of the reel winding with a uniform load on the drive.
The cutting system, kinematics and main components are exclusively from leading European manufacturers.
The «Eisen Löwe» Specification
| Parameters | Values |
| Working Width |
6, 7.4, 9.2 m |
| Length of the stem lift |
1390 mm |
| Transportation speed |
up to 20 km/h |
| Distance along the axes of the stalk lifters |
229 mm |
| Auger rotation speed |
170-190 rpm |
| The speed of the reel |
30-80 rpm |
| Number of double strokes of the cutting unit |
640-950 rpm |
| Reel drive |
From a hydraulic motor |
| Cutting unit drive |
Mechanical or hydraulic motor |
| Type of knife drive and cutting system |
Schumacher |
